Platform Trolley
Print
Brochure
-
Platform Trolley - Foldable Handle

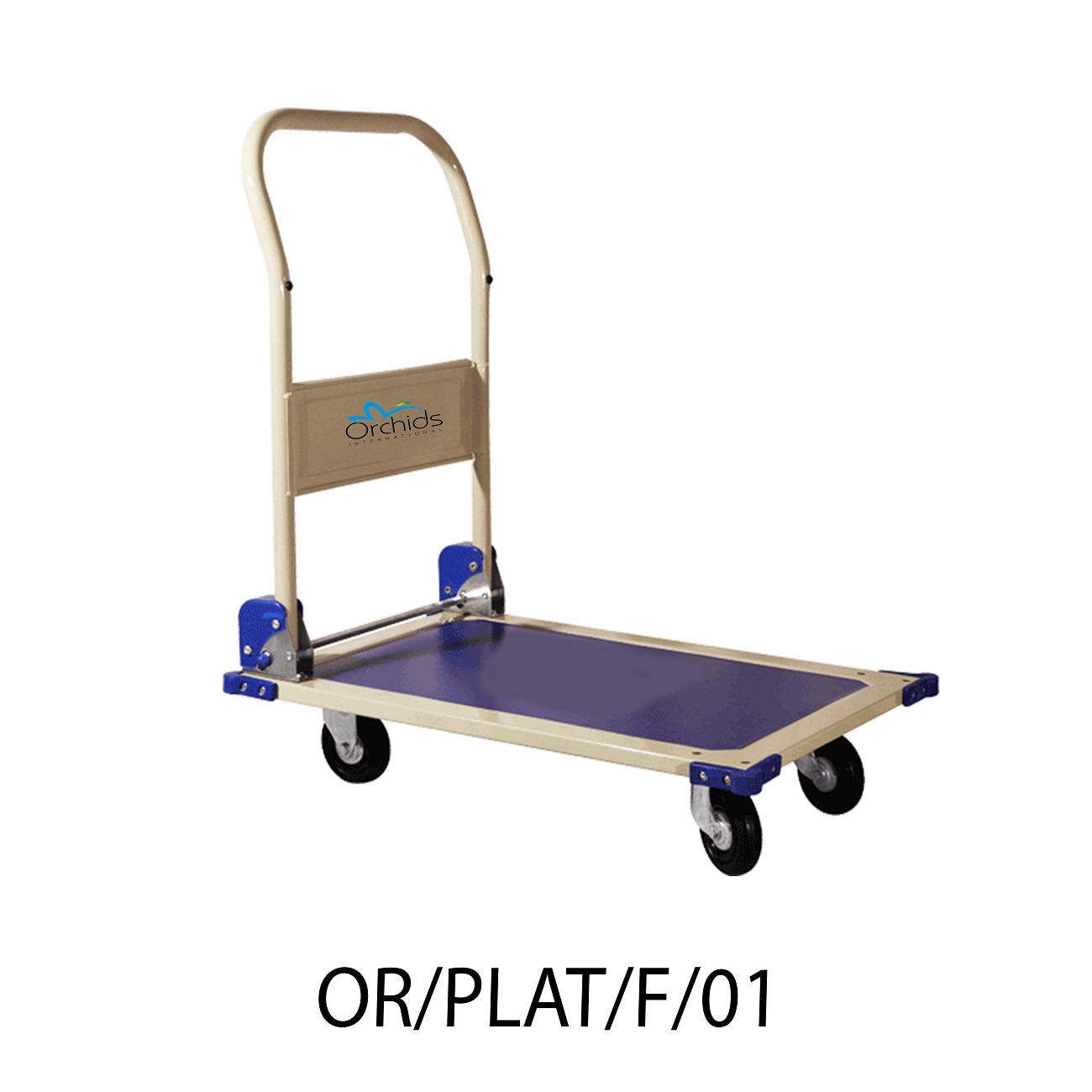

Item Code: OR/PLAT/F/01
DIMENSIONS: 710mm X 460mm.
PARTICULARS: 18 gauge pressed steel formed deck reinforced with pressed steel formed running beams and cross beams.
BUFFERS: “DASH” rubber corner buffers with platform protection matting.
HANDLE: Tabular reinforce with pressed steel back / can be folded flat.
CASTORS: 2 swivel + 2 fixed 100mm.dia, rubber on nylon centres.
CAPACITY: Load capacity 150 Kgs.
FINISH: Powder coated oven baked epoxy “ SIEMENS GREY”
Packing: Heavy corrugated cotton.
ENQUIRE NOW -
Platform Trolley - Foldable Handle

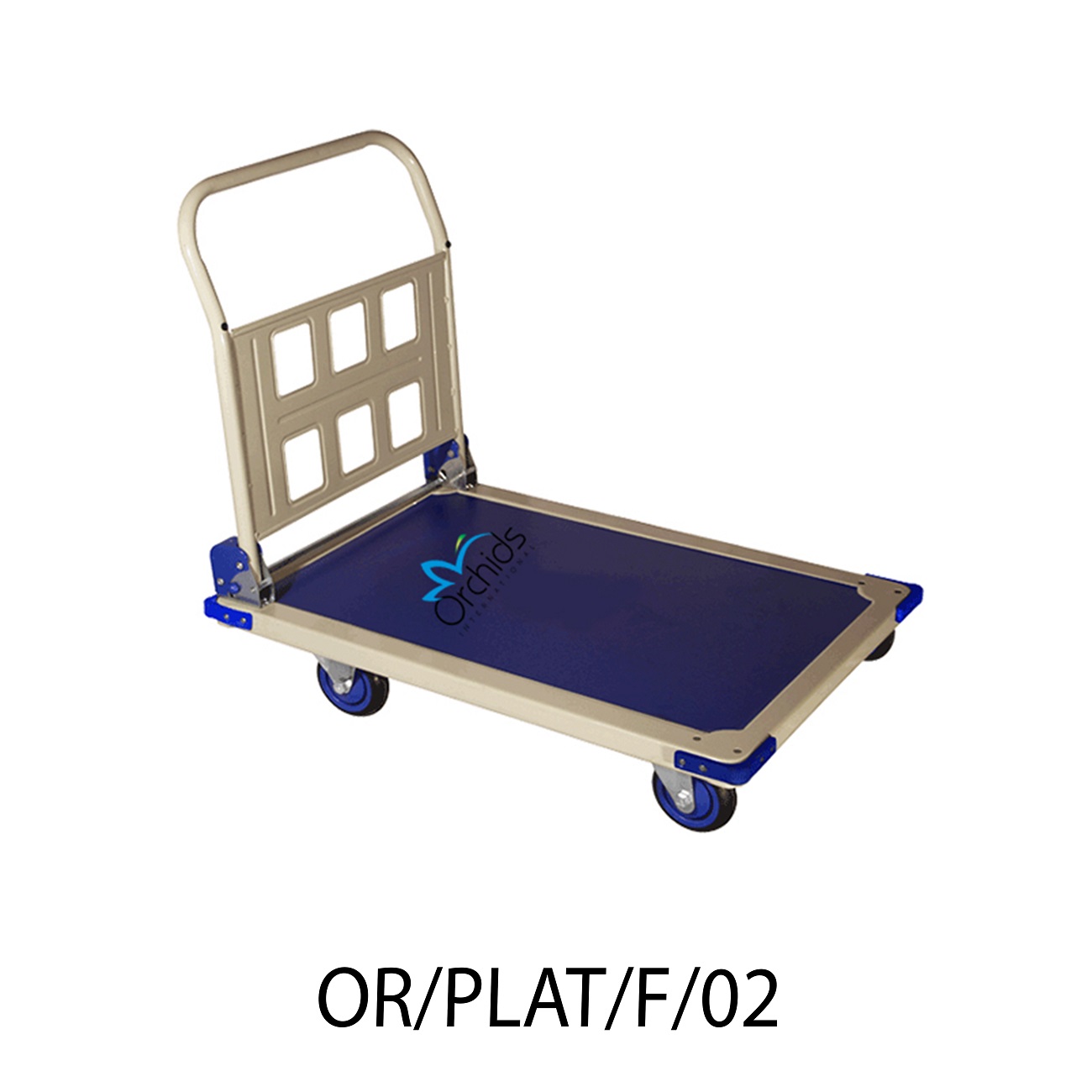

Item Code: OR/PLAT/F/02
DIMENSIONS: 900mm X 600mm.
PARTICULARS: 16 gauge pressed steel formed deck reinforced with heavy duty formed 16 gauge running and cross beams.
BUFFERS: “DASH” rubber corner buffers.
HANDLE: Heavy duty Tabular reinforce with pressed steel back, 340 mm above deck- supplied loose with heavy 22mm nuts and special flat spring washers for easy assembly / handle can be folded flat in PLAT-F-9060.
CASTORS: 2 swivel + 2 Matching rigid , pressed steel heavy duty castors 130mm dia , with integrally moulded on heavy duty castors steel centres with ball bearing, with thread guards.
CAPACITY: Load capacity 350 Kgs.
FINISH: Powder coated oven baked epoxy “ SIEMENS GREY”
Packing: Heavy corrugated cotton.
ENQUIRE NOW -
Platform Trolley - Single Handle

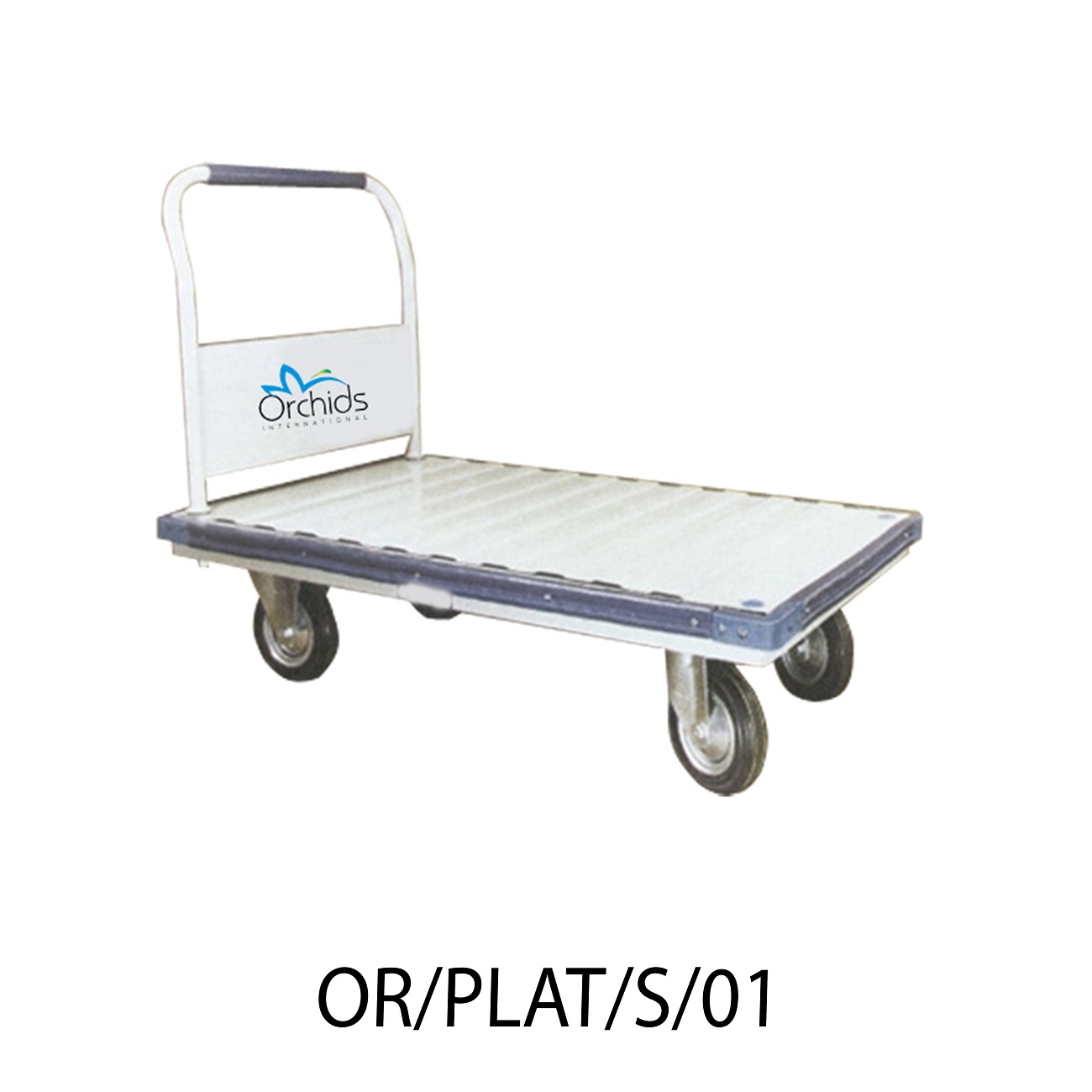

Item Code: OR/PLAT/S/01
DIMENSIONS: 1200mm X 750mm.
PARTICULARS: 16 gauge pressed steel formed deck reinforced with Heavy duty formed 16 gauge running and cross beams.
BUFFERS: “DASH” rubber corner buffers / all-round rubber guard.
HANDLE: Heavy duty Tabular reinforce with 18 guage pressed steel back, 340mm above deck – supplied loose with heavy 22mm nuts and special flat spring washers for easy assembly.
CASTORS: 2 swivel + 2 Matching rigid , pressed steel heavy duty castors 200mm dia , with integrally moulded on heavy duty pressed steel centres with ball bearing, with thread guards.
CAPACITY: Load capacity 500 Kgs.
FINISH: Powder coated oven baked epoxy “ SIEMENS GREY”
ENQUIRE NOW -
Platform Trolley - Single Handle

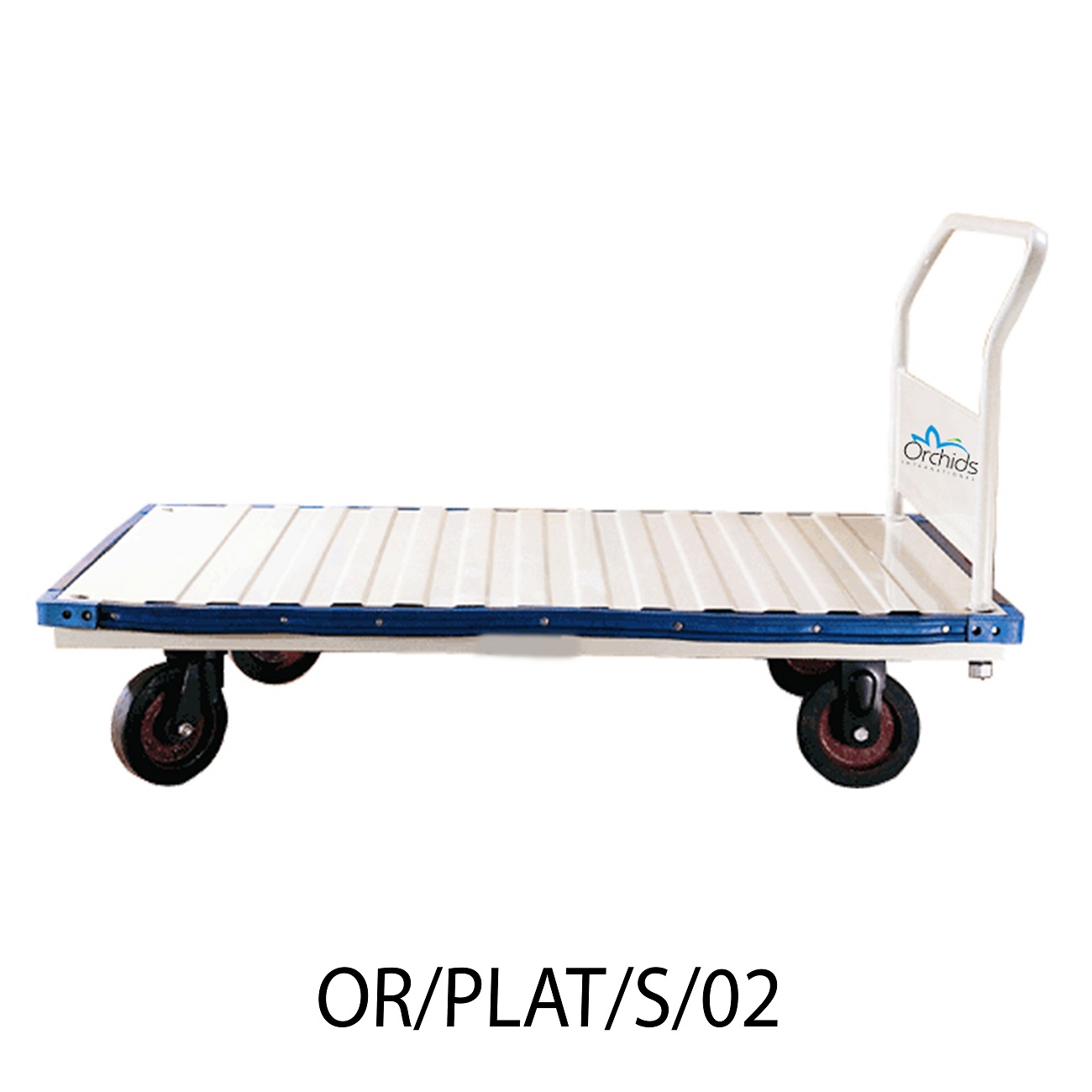

Item Code: OR/PLAT/S/02
DIMENSIONS: 1500mm X 900mm.
PARTICULARS: Heavy duty pressed steel formed deck reinforced with heavy duty formed running and cross beams.
BUFFERS: “DASH” rubber corner buffers / all-round rubber guard.
HANDLE: Heavy duty Tabular reinforce with 18 guage pressed steel back, 340 mm above deck- supplied loose with heavy 22mm nuts and special flat spring washers for easy assembly.
CASTORS: 2 swivel + 2 Matching heavy duty Forged castors with rubber tyred 200mm x 50mm wheels with reller bearing.
CAPACITY: Load capacity 1000 Kgs.
FINISH: Powder coated oven baked epoxy “ SIEMENS GREY” ENQUIRE NOW -
Platform Trolley - Double Handle
Item Code: OR/PLAT/D/01
DIMENSIONS: 1200mm X 750mm.
PARTICULARS: 16 gauge pressed steel formed deck reinforced with Heavy duty formed 16 gauge running and cross beams.
BUFFERS: “DASH” rubber corner buffers / all-round rubber guard.
HANDLE: Heavy duty Tabular reinforce with 18 guage pressed steel back, 340mm above deck – supplied loose with heavy 22mm nuts and special flat spring washers for easy assembly.
CASTORS: 2 swivel + 2 Matching rigid , pressed steel heavy duty castors 200mm dia , with integrally moulded on heavy duty pressed steel centres with ball bearing, with thread guards.
CAPACITY: Load capacity 500 Kgs.
FINISH: Powder coated oven baked epoxy “ SIEMENS GREY”
ENQUIRE NOW -
Platform Trolley - Double Handle

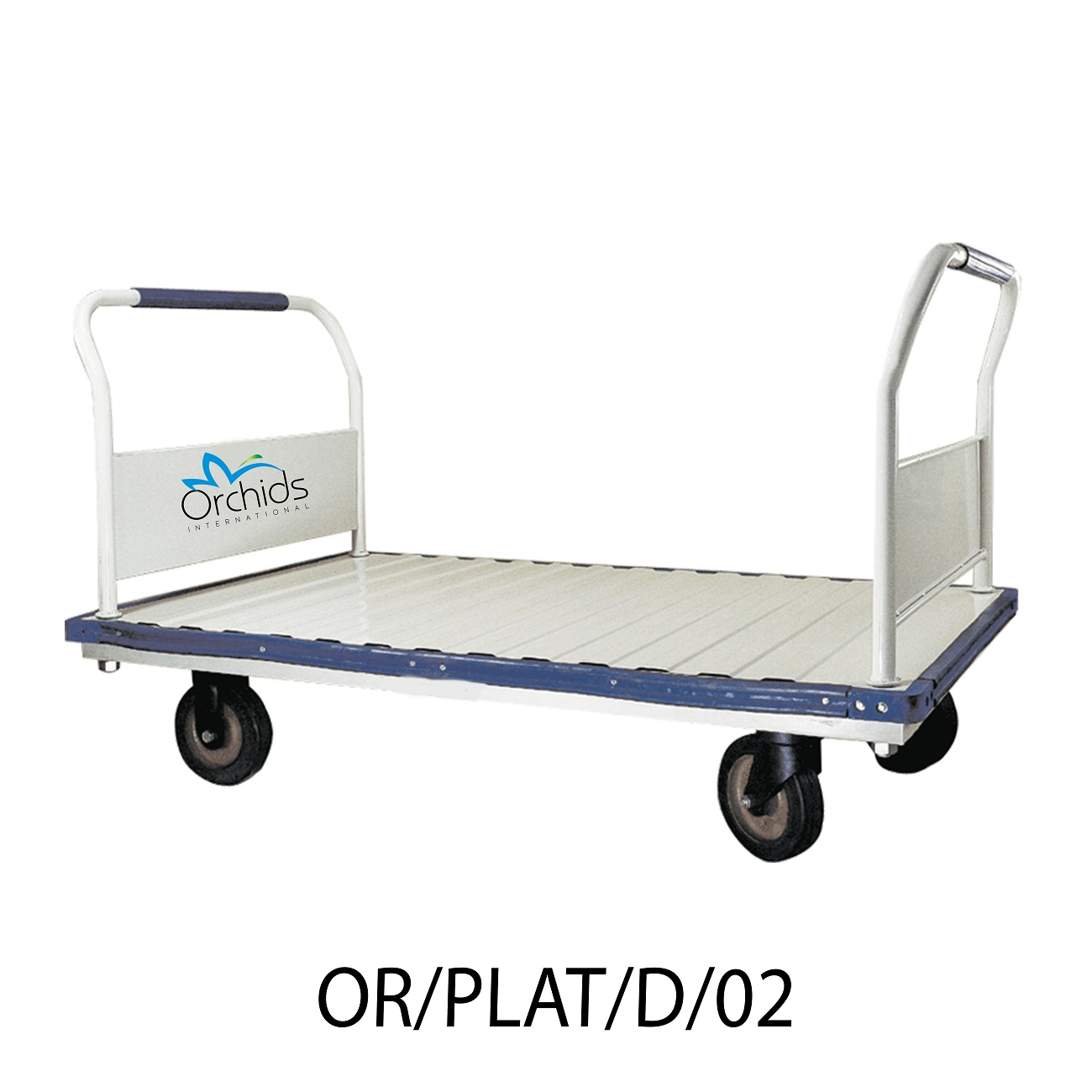

Item Code: OR/PLAT/D/02
DIMENSIONS: 1500mm X 900mm.
PARTICULARS: Heavy duty pressed steel formed deck reinforced with heavy duty formed running and cross beams.
BUFFERS: “DASH” rubber corner buffers / all-round rubber guard.
HANDLE: Heavy duty Tabular reinforce with 18 guage pressed steel back, 340 mm above deck- supplied loose with heavy 22mm nuts and special flat spring washers for easy assembly.
CASTORS: 2 swivel + 2 Matching heavy duty Forged castors with rubber tyred 200mm x 50mm wheels with reller bearing.
CAPACITY: Load capacity 1000 Kgs.
FINISH: Powder coated oven baked epoxy “ SIEMENS GREY”
ENQUIRE NOW -
Platform Trolley - Four Side Covered

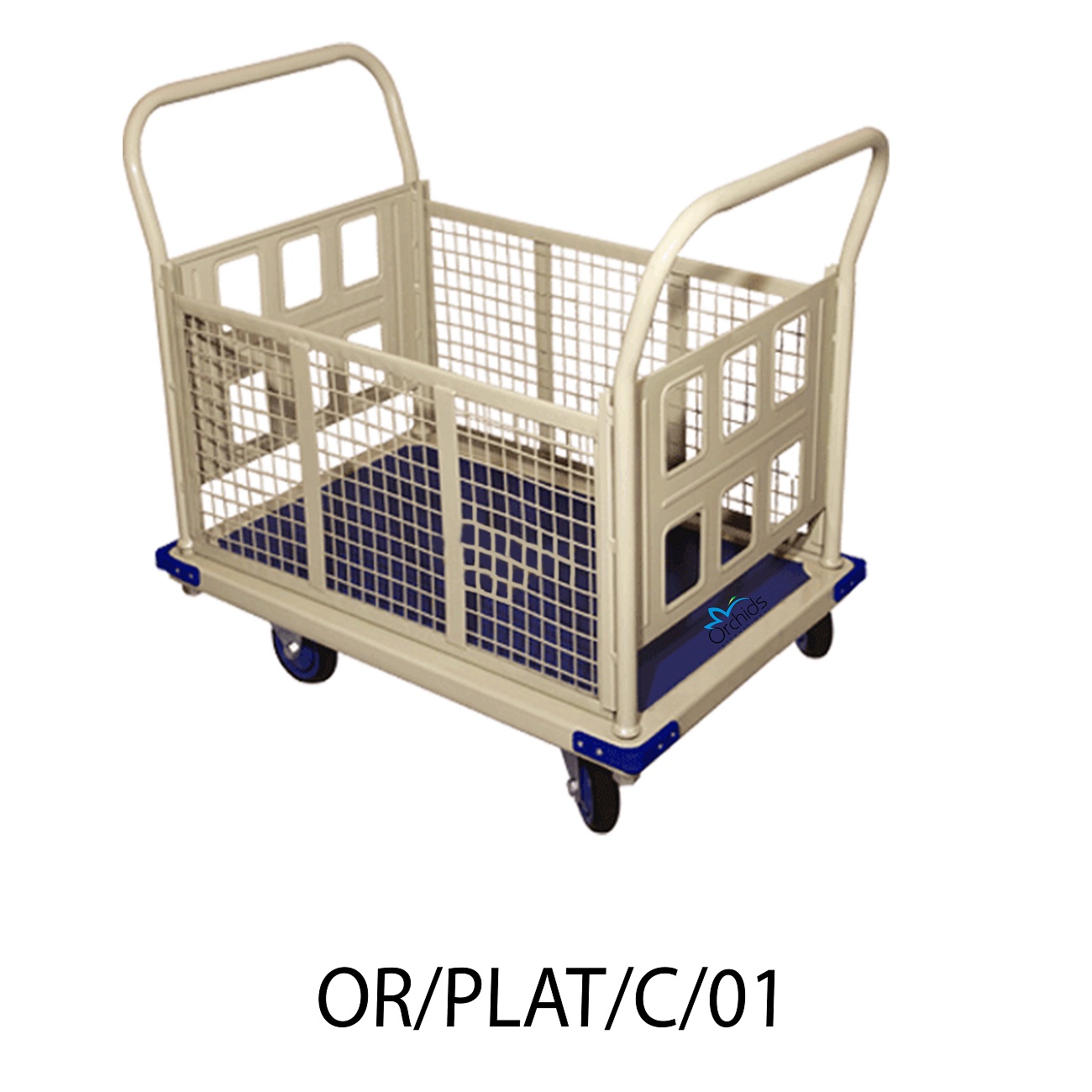

Item Code: OR/PLAT/C/01
DIMENSIONS: 900mm X 600mm.
PARTICULARS: 16 gauge pressed steel formed deck reinforced with heavy duty formed 16 gauge running and cross beams.
BUFFERS: “DASH” rubber corner buffers.
HANDLE: Heavy duty Tabular reinforce with pressed steel back, 340 mm above deck- supplied loose with heavy 22mm nuts and special flat spring washers for easy assembly / handle can be folded flat in PLAT-F-9060.
CASTORS: 2 swivel + 2 Matching rigid , pressed steel heavy duty castors 130mm dia , with integrally moulded on heavy duty castors steel centres with ball bearing, with thread guards.
CAPACITY: Load capacity 350 Kgs.
FINISH: Powder coated oven baked epoxy “ SIEMENS GREY”
Packing: Heavy corrugated cotton.
ENQUIRE NOW -
Platform Trolley - Four Side Covered

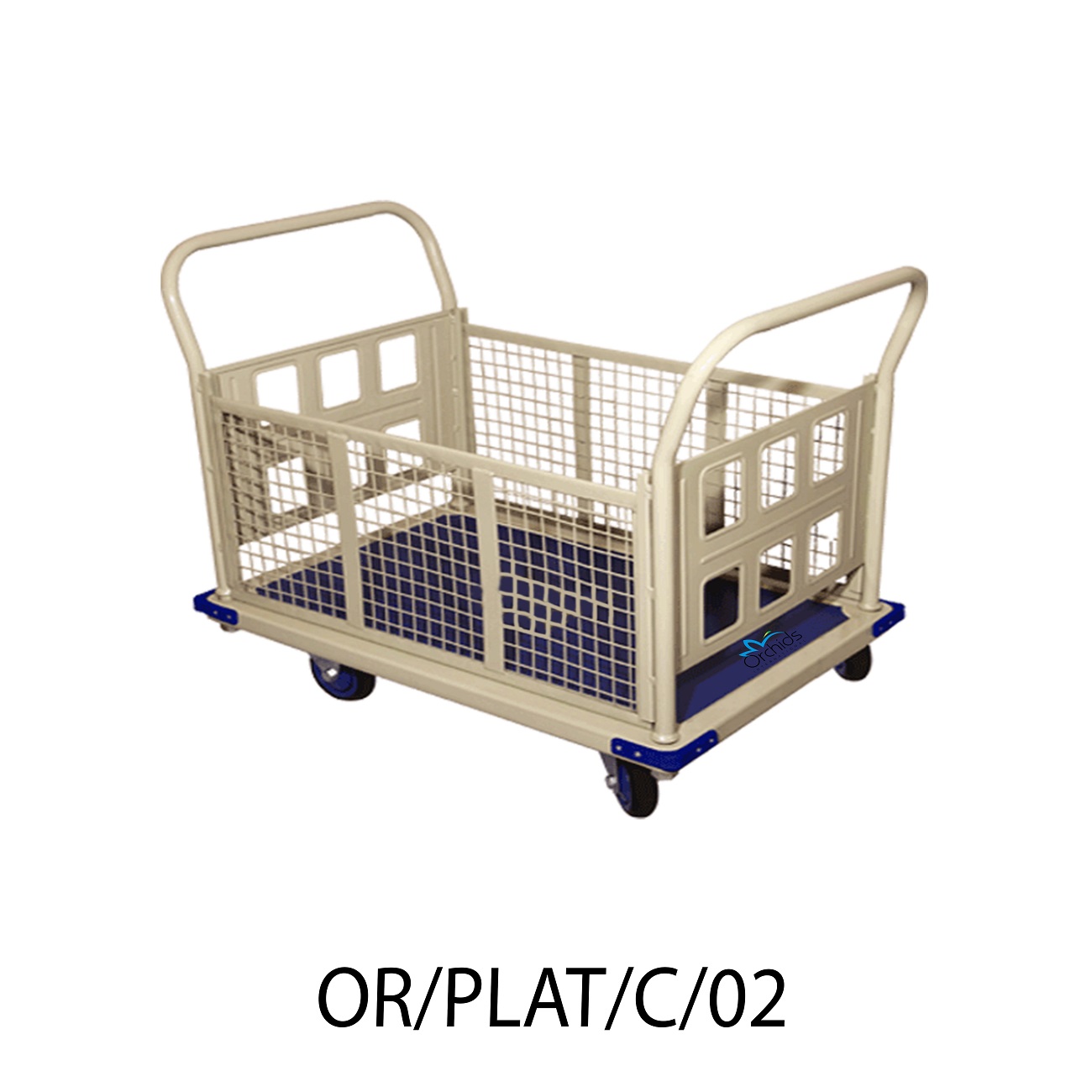

Item Code: OR/PLAT/C/02
DIMENSIONS: 1200mm X 750mm.
PARTICULARS: 16 gauge pressed steel formed deck reinforced with Heavy duty formed 16 gauge running and cross beams.
BUFFERS: “DASH” rubber corner buffers / all-round rubber guard.
HANDLE: Heavy duty Tabular reinforce with 18 guage pressed steel back, 340mm above deck – supplied loose with heavy 22mm nuts and special flat spring washers for easy assembly.
CASTORS: 2 swivel + 2 Matching rigid , pressed steel heavy duty castors 200mm dia , with integrally moulded on heavy duty pressed steel centres with ball bearing, with thread guards.
CAPACITY: Load capacity 500 Kgs.
FINISH: Powder coated oven baked epoxy “ SIEMENS GREY”
ENQUIRE NOW
